SUPERCYCLERequipment
11 · EcowittINTERMEDIATE

Ecowitt

Substrate moisture (WH51) and CO₂ (WH45/WH46) probes, all through the same GW1200/2000/3000 gateway. It's the cheapest way to get soil moisture in. Setup doesn't go through a username and password: you load one of our addresses into the gateway so it sends us the data at the same time as its own cloud.

  1. 01Pick Ecowitt and tap Generate link. It gives you an address, a port and an interval.
  2. 02Open WS View Plus on your phone — the gateway's setup app, not ecowitt.net.
  3. 03Go to Weather Services → Customized and enter the values exactly as the app gave them to you.
  4. 04Go back to Supercycler: the screen waits for the first data point and tells you when it arrives.
  5. 05Assign each detected probe to its zone.

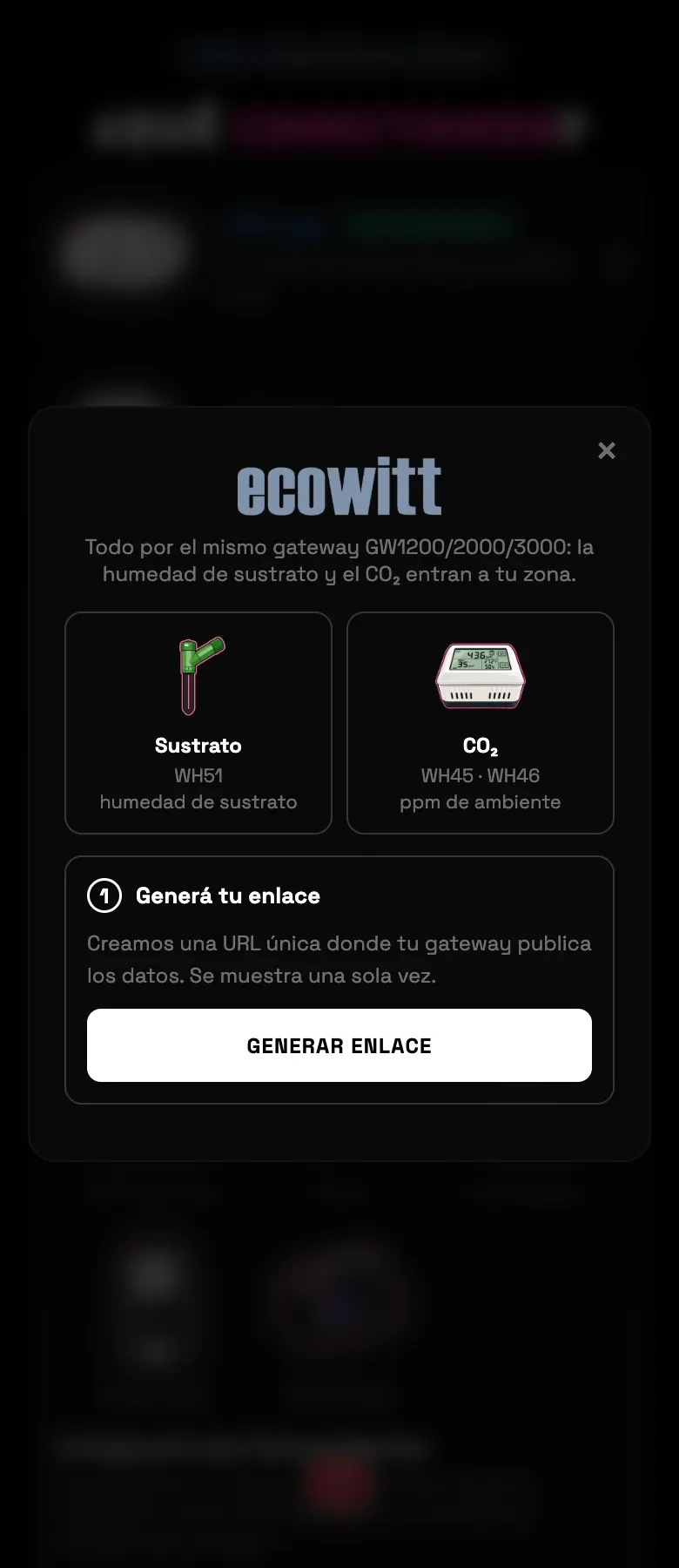

FIG 10 · Setting up Ecowitt starts by generating the address you load into the gateway.
FIG 10 · Setting up Ecowitt starts by generating the address you load into the gateway.
Do this
Set the gateway up from WS View Plus with your phone right next to the device.
Avoid this
Don't cancel the registration once it says “Hub connected”. You're one step away.

How urgent it is

EssentialNone of this is essential.
ImportantSubstrate moisture if you water automatically.
OptionalCO₂.
